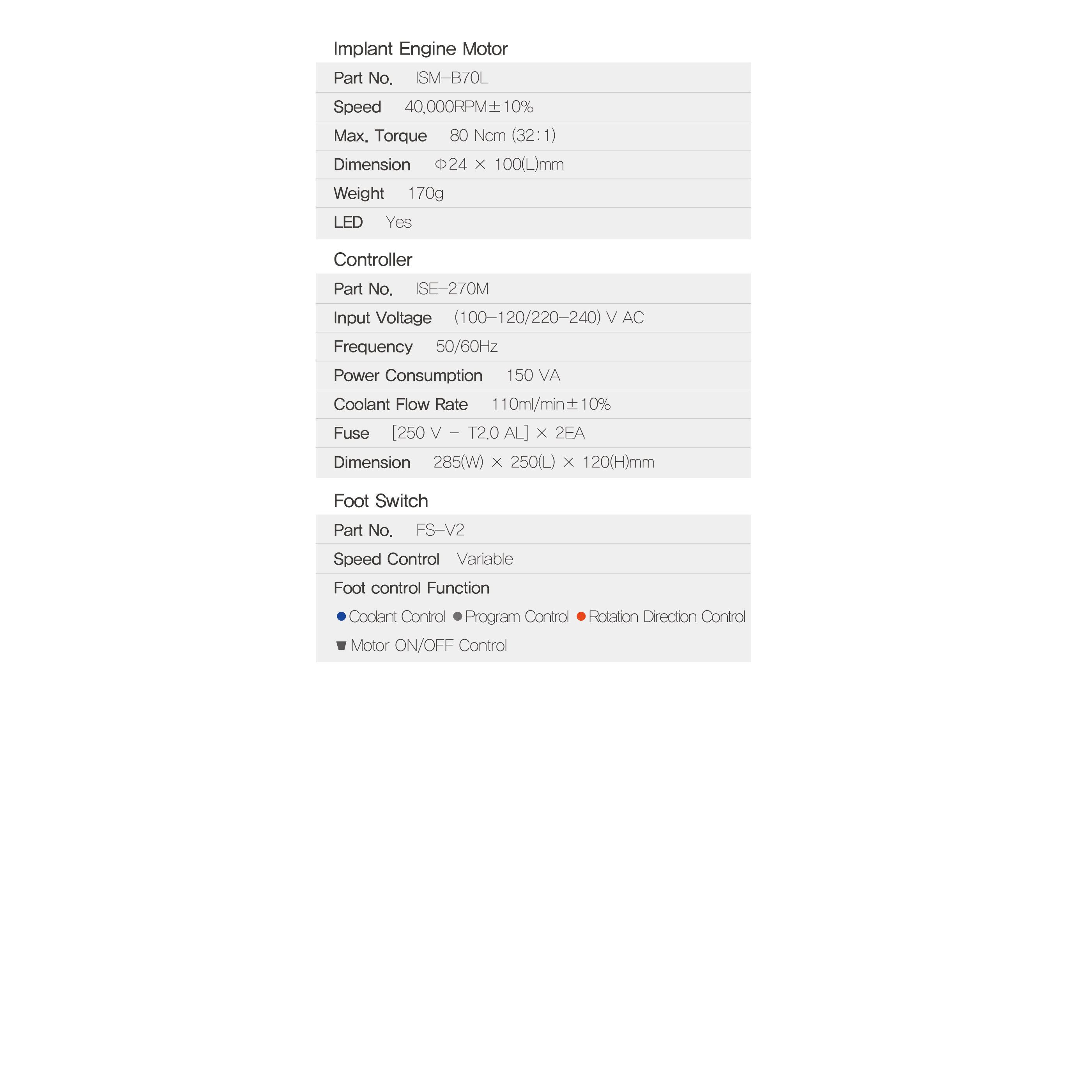

PRODUCT FEATURES | ||
 |
 |
Max 80 Ncm |
|---|---|---|
| (When handpiece gear ratio is 32:1) | ||
 |
Torque limit function | |
|
The beep sounds when load torque above torque value set by a user operates longer than 3 seconds and the operation stops to ensure patient’s safety. |
||
 |

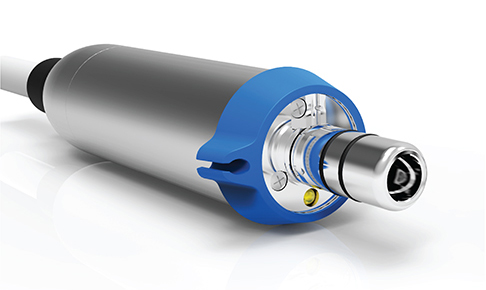

Powerful optic motor | |
| It shows LED functioning within motor during the motor operation. | ||
 |

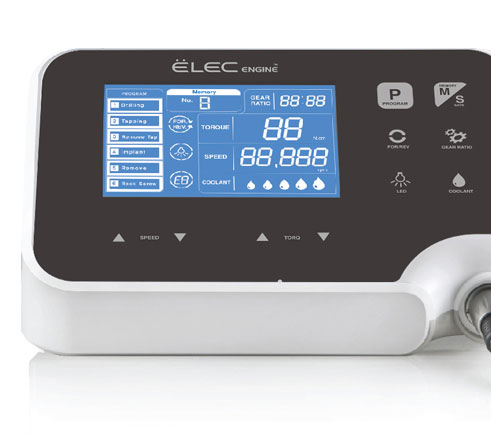

Real-time torque and RPM display |  |
|---|---|---|
|
The compact control unit shows real time rpm and torque through digital panel. It helps users to perform a surgery more precisely. |
||
 |
Program modes | |
|
Program button enables users to select 6 modes in turns _ Drilling,Tapping, Remove Tap, Implant, Remove, Lock Screw. Users can select them for each purpose. |
||
 |
Memory function | |
|
Users can save 9 personal settings using memory button, which makes it possible to load the different settings immediately in terms of program mode, rpm, torque, coolant, speed, gear ratio, turn direction. |
||
 |
Auto calibration function | |
|
Calibration function operates by simultaneously pressing +/- button for 2~3 seconds. Perform the Calibration function when the motor is initially used and operate this. function under no load status. |
||
 |
 |

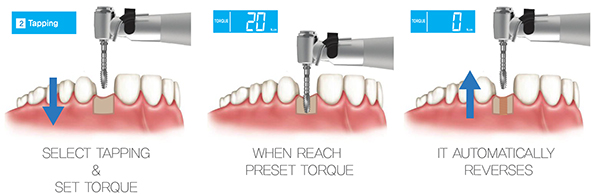

Thread Cutting Function |
|---|---|---|
| Thread cutting is available in Tapping mode among 6 basic programs. | ||
| Thread Cutting? | ||
|
The thread cutter function supports the surgery when makes tap for implants in to dense (D1) bone.
|
||
PRODUCT FEATURES | ||
| ||
|---|---|---|
|
Max 80 Ncm (When handpiece gear ratio is 32:1) |
|
|
Torque limit function The beep sounds when load torque above torque value set by a user operates longer than 3 seconds and the operation stops to ensure patient’s safety. |
|
|
Powerful optic motor It shows LED functioning within motor during the motor operation. |
|
| ||
|
Real-time torque and RPM display The compact control unit shows real time rpm and torque through digital panel. It helps users to perform a surgery more precisely. |
|
|
Program modes Program button enables users to select 6 modes in turns _ Drilling,Tapping, Remove Tap, Implant, Remove, Lock Screw. Users can select them for each purpose |
|
|
Memory function Users can save 9 personal settings using memory button, which makes it possible to load the different settings immediately in terms of program mode, rpm, torque, coolant, speed, gear ratio, turn direction. |
|
|
Auto calibration function Calibration function operates by simultaneously pressing +/- button for 2~3 seconds. Perform the Calibration function when the motor is initially used and operate this. function under no load status. |
|
| ||
|
Thread Cutting Function Thread cutting is available in Tapping mode among 6 basic programs. |
|
| Thread Cutting? The thread cutter function supports the surgery when makes tap for implants in to dense (D1) bone.
|
||
