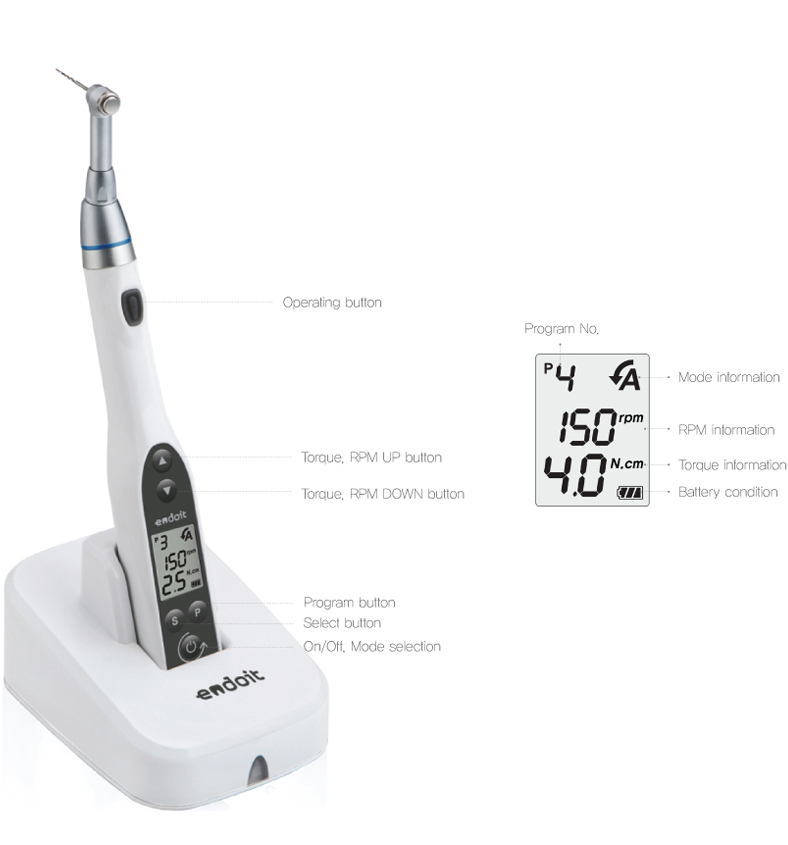

PRODUCT FEATURES
Torque range : 0.5 ~ 4.0 N.cm
It can be adjusted from 0.5 Ncm to maximum 4.0 N.cm and can be set
in 0.5 N.cm units.
RPM range : 120 ~ 500rpm
The rotation speed can be set from 120 rpm to 500 rpm.
5 Operation Modes
Forward, Reverse, Auto Reverse Stop, Auto Reverse Run, Reciprocating
8 Memory Programs
Selecting each number brings up the stored torque, rotation speed, and
rotation mode settings. You can save new settings in memory.
Continuous use
Available for 3 hours and 30 minutes with 1 hour and 30 minutes of full charge
(※ Based on continuous no-load operation )
Forward Mode

The motor rotates in forward direction and stops when the set torque value is reached.
Reverse Mode

The motor rotates in reverse direction, it does not stop even when the set torque value is reached.
Reciprocating mode

The motor reciprocates in the forward and reverse directions.
Rotate in the normal forward 150˚ / reverse 30˚the rotation value changes flexibly according to the load value.
Auto Reverse Stop mode

Set while the motor rotates in the forward direction reverse when the torque value is reached rotate
If the load is lower than the set torque value the motor stops.
Auto Reverse Run mode

Set while the motor rotates in the forward direction Reverse when the torque value is reached rotate
If the load is lower than the set torque value the motor will rotate in the forward direction again.

PRODUCT FEATURES
Torque range : 0.5 ~ 4.0 N.cm
It can be adjusted from 0.5 Ncm to maximum 4.0 N.cm and can be set in 0.5 N.cm units.
RPM range : 120 ~ 500rpm
The rotation speed can be set from 120 rpm to 500 rpm.
5 Operation Modes
Forward, Reverse, Auto Reverse Stop, Auto Reverse Run, Reciprocating
8 Memory Programs
Selecting each number brings up the stored torque, rotation speed, and rotation mode settings. You can save new settings in memory.
Continuous use
Available for 3 hours and 30 minutes with 1 hour and 30 minutes of full charge (※ Based on continuous no-load operation )
Forward Mode
The motor rotates in forward direction and stops when the set torque value is reached.
Reverse Mode
The motor rotates in reverse direction, it does not stop even when the set torque value is reached.
Reciprocating mode
The motor reciprocates in the forward and reverse directions. Rotate in the normal forward 150˚ / reverse 30˚the rotation value changes flexibly according to the load value.
Auto Reverse Stop mode
Set while the motor rotates in the forward direction reverse when the torque value is reached rotate If the load is lower than the set torque value the motor stops.
Auto Reverse Run mode
Set while the motor rotates in the forward direction Reverse when the torque value is reached rotate If the load is lower than the set torque value the motor will rotate in the forward direction again.
